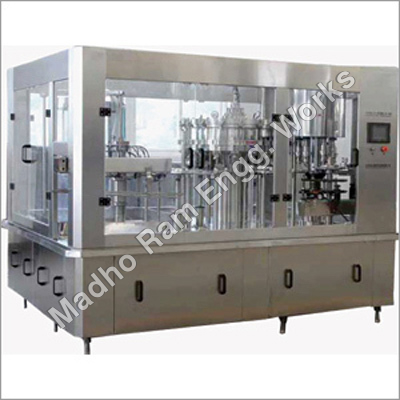

Our firm holds an outstanding position in the market as a prominent manufacturer, supplier and exporter of Automatic Soda Water Rotary Machine. Used for filling juices, water, carbonated beverages in PET bottles, these products find application in the beverage industry. With automatic PLC controlling, these products provide accurate and optimum performance. The offered machines are known for their low maintenance, longer service life, corrosion free surface and smooth functioning. Automatic Soda Water Rotary Machine is available with us in different models in accordance to the varying needs of the clients.
Silent Features of Our Machines :-
- All the electrical / electronic components are of Multi National renowned companies like Mitsubishi, Schneider, Atonics
- Heavy Duty and Long life Motors are Used
- Filling tank with level sensor to control water level automatically
- Magnetic Torque system for smooth capping
- High speed & precision filling valves to control liquid level accurately and ensure accurate filling
- All Contact Parts made of SS 304 / SS 316 material
- Equipped with complete CIP circulation and control program
- All the parts of bottle conveying adopts neck holding system and therefore less parts are required to switch between different bottles.
Detailed Product Description :-
- In feed SS Air Conveyor with Blower
- Automatic Washing, Filling & Capping Machine Unit covered with SS Frame and acrylic Doors
- Out feed SS chain conveyor with gearbox
- Inspection Light
- Shrink Tunnel
- Cap Autoloader
- Bottle Un-Scrambler
- PLC Controlled
- Touch Screen Panel
Washing Heads | 6 | 8 | 12 | 18 | 24 |
Filling Heads | 6 | 8 | 12 | 18 | 24 |
Capping Heads | 3 | 4 | 4 | 6 | 10 |
Capacity (BPH) | 1000 | 2000 | 3000 | 5000 | 7000 |
Filling Temp. | 2-6 Degree | ||||
Filling Type | Counter Pressure | ||||
Rinsing Water Pressure | 0.2-0.25 Mpa |
